Water - Cooled Chiller

Water Cooled Chiller

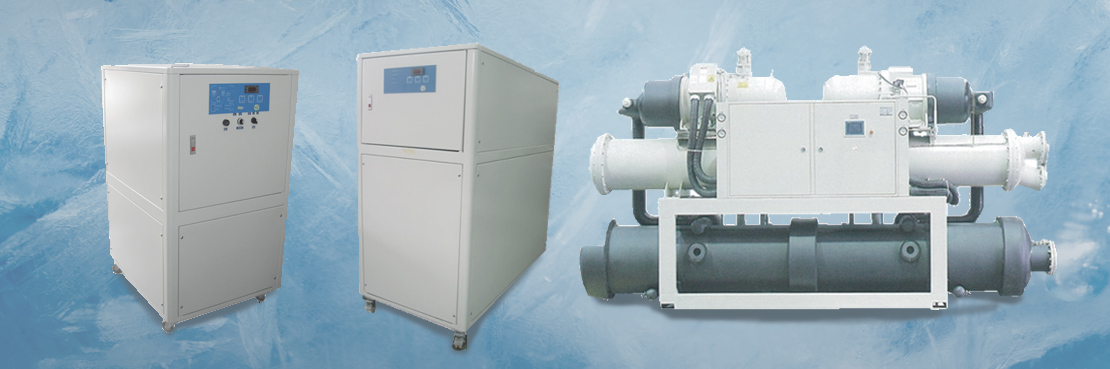

Weeseng water-cooled industrial chiller is created to allow the user to build a custom tailor chiller. The chiller is applied with water-cooled condensers designated to suit both industrial and commercial application.

The chiller is compact and required the minimum of floor space for installation. Chiller with a condensing unit, heat exchanger, water pump, tank and all the electrical and refrigeration components are housed in one box panel as an integral part for easy control and maintenance.

Chillers are available in several capacities over a wide operation range.

For more information about this product, kindly send your enquiries.

The following is a summary of our water cooled chillers specifications:

Model Unit WS - 303W WS - 403W WS - 503W WS - 803W WS - 1003W
Cooling Capacity* 50 Hz Kcal/hr
60 Hz		 6,950
8,340		 9,068
10,880		 13,600
16,320		 16,930
20,310		 22,970
27,800
Condenser Water Flow Rate L/min 30 40 60 80 100
Chilled Water Pump
Chilled Water Flow Rate
Water Tank Capacity		 KW  0.55 0.75
L/min 40/2 Bar  80/3 Bar
L 30 50
Compressor Power Source
200-240V
380-440V		 3PH (50/60hz)
Total Running AMPS 10.6
5.6		 13.5
7.0		 21.0
9.5		 27.5
13.6		 33.0
16.0
Height mm 1,045 1,045 1,350 1,350 1,505
Width mm 510 510 585 715 715
Depth mm 765 765 1,145 1,145 1,220
Est.Machine Weight KG 100 120 185 220 300
Model Unit WS - 1503W WS - 2003W WS - 3003W WS - 4003W WS - 6003W
Cooling Capacity* 50 Hz Kcal/hr
60 Hz		 33,250
40,230		 47,456
57,420		 66,500
80,430		 94,910
114,840		 142,370
170,840
Condenser Water Flow Rate L/min 150 220 300 450 650
Chilled Water Pump
Chilled Water Flow Rate
Water Tank Capacity		 KW  1.5 3.0 4.0 7.5
L/min 160/3 Bar 250/3 Bar 350/3 Bar 500/3 Bar
L 120 200 300 450
Compressor Power Source
380-440V 3 PH (50/60Hz)

Total Running AMPS -
25.0		 -
33.0		 -
52.0		 -
69.0		 -
100
Height mm 1,555 1,500 1,600 1,930 2,005
Width mm 765 965 995 1,145 1,220
Depth mm 1,475 1,475 1,830 1,830 1,905
Est.Machine Weight KG 450 480 780 950 1,200

*Cooling capacity is based on the following conditions –
Chilled water leaving / entering temperature: 7 / 12°C
Condenser water inlet temperature: 28°C
