Air - Cooled Chiller

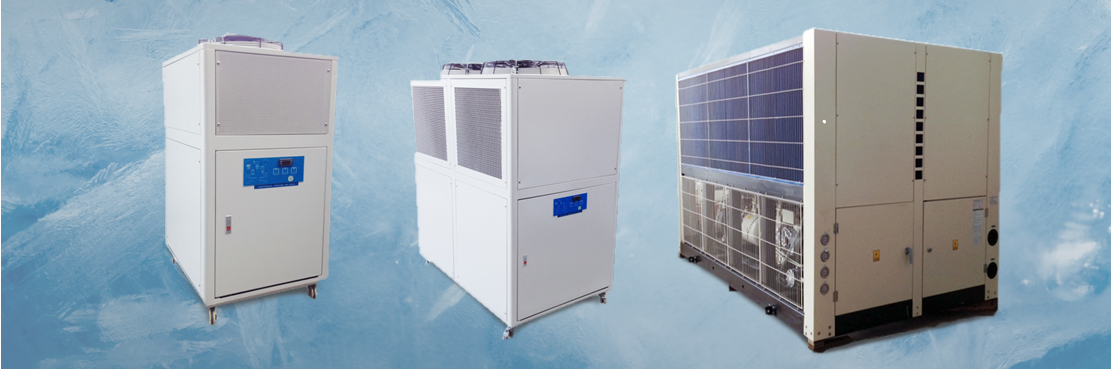

Air Cooled Chiller

Weeseng air-cooled industrial chiller is created to allow the user to build a custom tailor chiller. The chiller is applied with air-cooled condensers designated to suit both industrial and commercial application.

The chiller is compact and required the minimum of floor space for installation. Chiller with a condensing unit, heat exchanger, water pump, tank and all the electrical and refrigeration components are housed in one box panel as an integral part for easy control and maintenance.

Chillers are available in several capacities over a wide operation range.

For more information about this product, kindly send your enquiries.

The following is a summary of our air cooled chillers specifications:

Model Unit WS - 101A WS - 201A WS - 303A WS - 403A WS - 503A WS - 803A
Cooling Capacity* 50 Hz Kcal/hr
60 Hz		 3,022
3,620		 4,534
5,440		 6,950
8,340		 9,068
10,880		 13,600
16,320		 16,930
20,310
Condenser Air Flow Rate m³/hr 1,290 1,935 2,967 3,870 5,805 7,225
Chilled Water Pump
Chilled Water Flow Rate
Water Tank Capacity		 KW 0.4 0.6 0.8
L/min 15/1.5 bar 40/2 bar 80/3 bar
L 15 30 50
Compressor Power Source   200-240V 1PH(50/60Hz)
200-240V
380-440V		 3PH (50/60hz)
Total Running AMPS 8.5
-
-		 12.8
-
-		 -
10.6
5.6		 -
13.5
7.0		 -
21.0
9.5		 -
27.5
13.6
Height mm 885 880 1,310 1,310 1,350 1,460
Width mm 510 560 715 715 740 865
Depth mm 635 815 840 840 890 1,220
Est.Machine Weight KG 70 90 150 165 235 280
Model Unit WS - 1003A WS - 1503A WS - 2003A WS - 3003A WS - 4003A WS - 6003A
Cooling Capacity* 50 Hz Kcal/hr
60 Hz		 22,970
27,800		 33,250
40,230		 47,456
57,420		 66,500
80,430		 94,910
114,840		 142,370
170,840
Condenser Air Flow Rate m³/hr 9,805 14,190 20,253 28,380 40,506 60,759
Chilled Water Pump
Chilled Water Flow Rate
Water Tank Capacity		 KW 0.8 1.5 3.0 4.0 7.5
L/min 80/3 bar 160/3 bar 250/3 bar 350/3 bar 500/3 bar
L 50 120 200 300 450
Compressor Power Source   200-240V
380-440V
3PH (50/60hz)		 380-440V 3 PH(50/60Hz)
Total Running AMPS -
33.0
16.0		 -
-
25.0		 -
-
33.0		 -
-
52.0		 -
-
67.0		 -
-
100.0
Height mm 1,460 1,555 2,005 1,725 2,005 1,980
Width mm 865 865 1,070 1,730 2,040 1,830
Depth mm 1,220 1,425 1,730 1,730 1,730 3,050
Est.Machine Weight KG 350 430 500 760 900 1,200

*Cooling capacity is based on the following conditions –
Chilled water leaving / entering temperature : 7 / 12 °C
Entering air-cooled condenser air temperature : 35 °C
